Enameled Wire
ZhenAn International Co., Limited. is located in Anyang City, China, and has more than 30 years of experience and technology accumulation in the metallurgical industry.
Currently, Zhenan operates fully automatic and intelligent production lines for metallurgical and metal materials, with a stable annual output and sales volume of 150,000 metric tons.
Our factory covers an area of approximately 30,000 square meters, supporting stable and large-scale production.
Quality Assurance
Our quality inspectors strictly control the quality of each link to ensure that each batch of products meets international standards.
Good Service
Zhenan has an excellent and professional team dedicated to providing you with high-quality metallurgical product materials and services.
Customization
According to customer requirements, we also provide customized metallurgical material products with special specifications, shapes and materials.
Fast Delivery
With huge production capacity, we ensure in time delivery and transport to the destination in the first time.
Wide Range Of Applications
ZhenAn metallurgical materials products are widely used in casting, steelmaking, electricity, non-ferrous metals, petrochemicals, glass, building materials and other fields, and are exported to more than 80 countries and regions in the world.

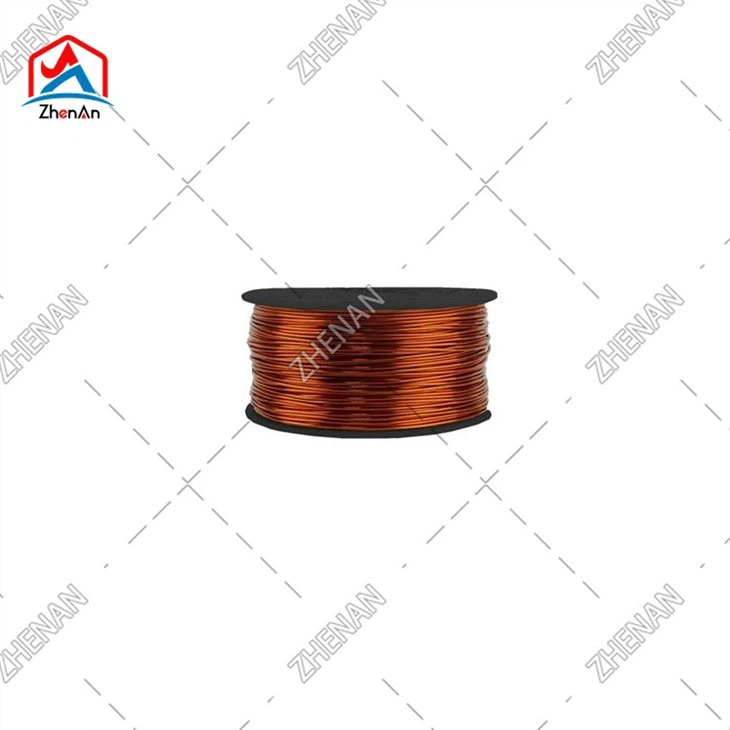

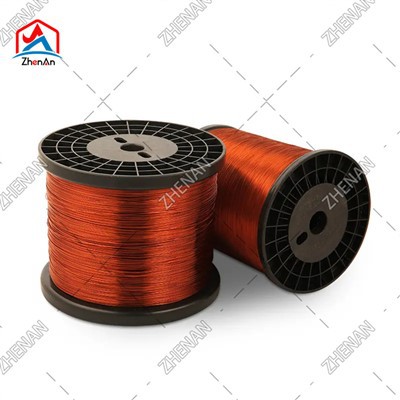

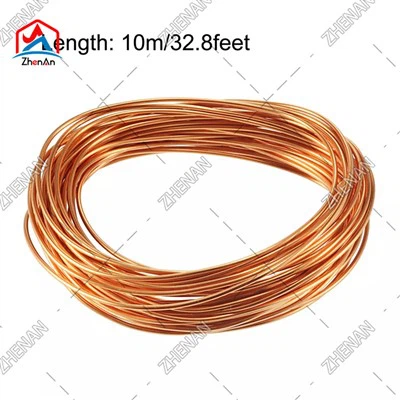

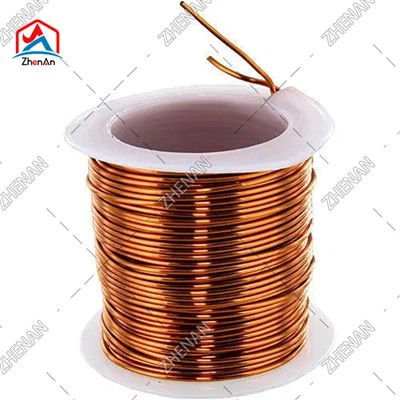

Enameled Wire
One of the main advantages of Enameled Wire copper wire is its excellent electrical conductivity. Copper is known for its excellent ability to conduct electricity, and when combined with the insulating properties of enamel, it can create wires that are both efficient and reliable. This efficiency reduces energy losses, making it an environmentally friendly choice for a variety of applications. Additionally, the flat design allows for better heat dissipation, which is critical in high-performance environments where overheating can cause failure. The durability of the enamel coating also means the wires can withstand mechanical stress, ensuring longevity and reducing the need for frequent replacement.
|
Model |
Size(mm) |
Conductor Dimension(mm) |
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km) |
Breakdown voltage(kv) |
Pinhole |
Elongation |
Soderability |
||||||
|
Width |
Tolerance |
Thickness |
Tolerance |
Width |
Thickness |
||||||||||
|
SFT-AIW |
1.50x5.00 |
|
±0.06 |
1.500 |
±0.03 |
0.025±0.015 |
Max.5.1 |
Max.1.58 |
2.960 |
0.7 Min |
3Max. |
30 Min. |
350 ℃ |
||
|
Why Our Products |
Wire Diameter: 0.08-3.5 mm |
||||||||||||||
|
Automated Production and High Efficiency |
|||||||||||||||
|
Excellent Quality |
|||||||||||||||
|
Raw Materials |
Copper with Coating |
||||||||||||||
|
The Manufacturing Process |
Forming, Stripping, Tin Plating, Cleaning |
||||||||||||||
|
Inspection Department |
IPQC, FQC, IQC |
||||||||||||||
|
Inspection Tools |
Calipers, Projector, 2.5D Measuring Machine, Height Gauge, Salt Spray Test Equipment, High Temperature and Humidity Equipment |
||||||||||||||
|
Package and Shipment |
PE Bags, Blister Trays/Boxes, EPE Foam, Cartons |
||||||||||||||
|
Sample Lead Time T0 |
7-15 Days, 30 days if molds are required |
||||||||||||||
|
Field of Application |
Terminals and inductive products for servers |
||||||||||||||
|
Customer Group |
Huawei, Inspur, Google |
||||||||||||||
Application
Electromagnetic Furnace Wire Disc,Drives for household appliances, mutual inductor,pole windings, power tools, coils for the speakers
|
Type |
Polyester |
Modified Polyester |

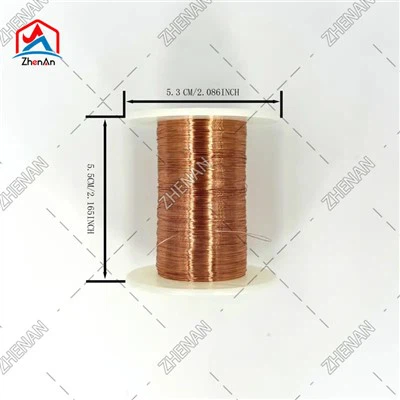

Polyurethane |
Polyesterimide |
Polyamide-imide |
Polyamide |
|
Code |
PEW, QZ |
PEW, QZ |
UEW, QA |
EIW, QZY |
EI/AIW, QZY/XY |
AIW, QXY |
|
Thermal Class |
Class B, 130℃ |
Class F, 155℃ |
Class F, 155℃ |
Class H, 180℃ |
Class H, 200℃ |
Class L, 220℃ |
|
Insulation thickness |
Grade 1, 2, 3 |
|||||
|
Characteristics |
Good heat resistance and mechanical strength. |
High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance |
Solderability(no need to remove the insulation). |
Good thermal shock resistance and refrigerant resistance. |
More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance |
Highest heat class |
|
Low cost. |
High frequency resistance and dyeability |
Excellent chemical resistance, abrasion resistance |
||||
Features
Customizable: Enameled Copper Wire model Q(ZY/XY)-2/200 offers customizability in size, with various diameter options available, catering to the diverse requirements of its customers. This unique product allows for efficient adaptability to different applications and projects.
High-Quality Insulation: The enameled copper wire is made with high-quality insulation material, assuring the safe and reliable performance of your equipment. The insulation prevents overheating, preventing potential hazards and providing you with peace of mind when using the product.
Versatile Application: Specifically designed for use in motors and fans, the wire is versatile and suitable for a wide range of industries. Its durability and consistency make it the perfect choice for high-performance applications.
Environmental Protection: KINGDE ensures that the enameled copper wire is environmentally friendly by using sustainable packaging materials. Using carton boxes and wooden pallets, the company is committed to reducing its carbon footprint and promoting a better green future.
Competitive Pricing: The Q(ZY/XY)-2/200 enameled copper wire offers excellent value for money. With the right balance of quality and affordability, this product ensures that your money is spent wisely and effectively in enhancing productivity.
