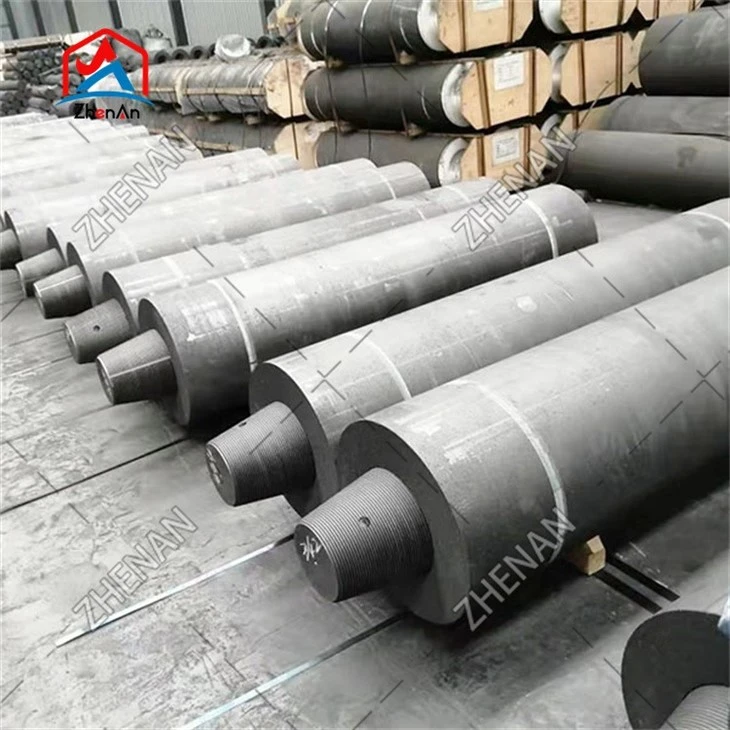

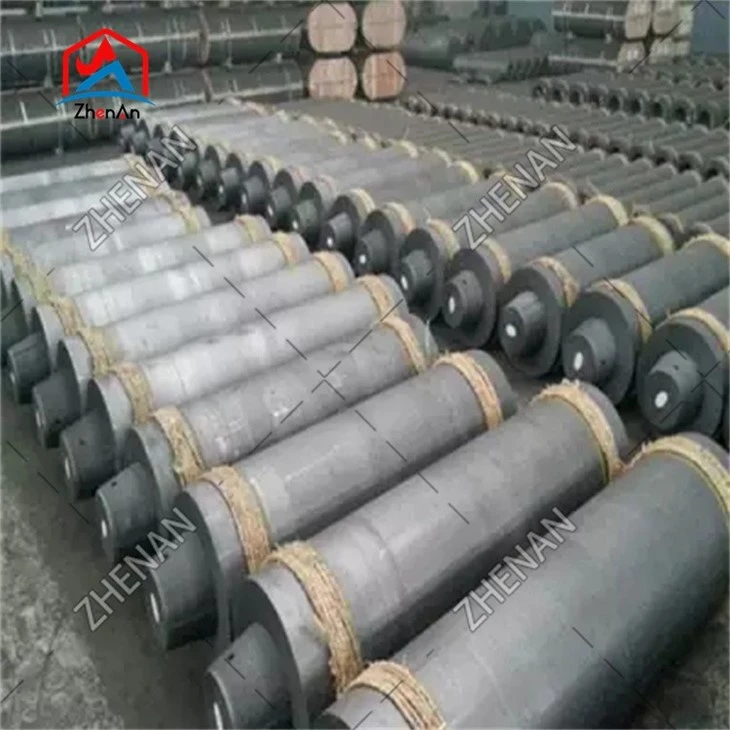

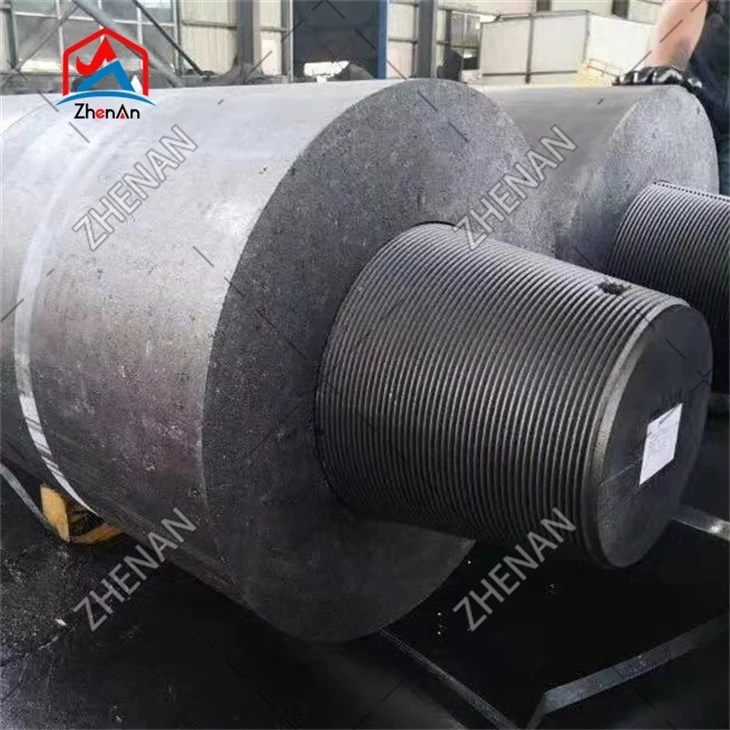

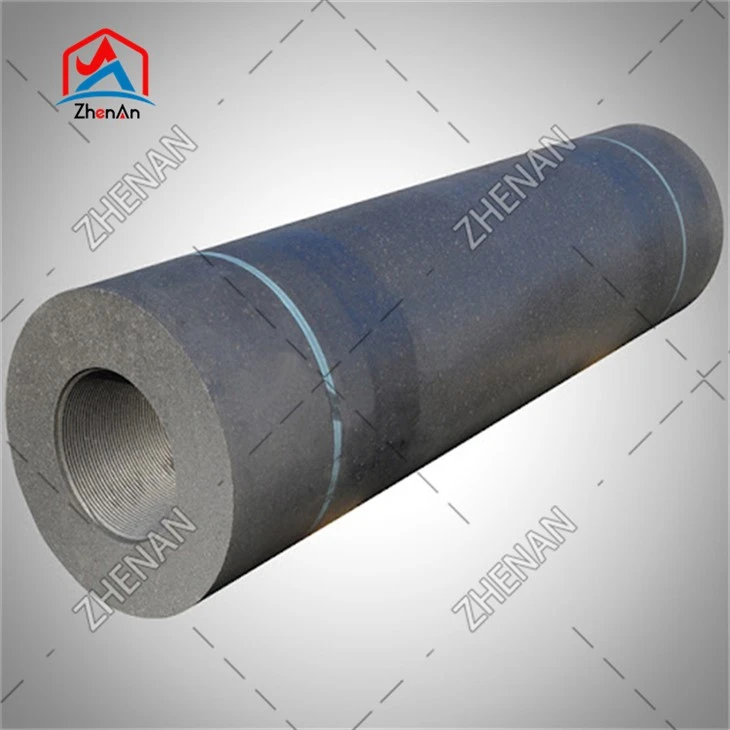

Uhp Graphite Electrode



We have more export experience, competitive prices and best after-sales service. In addition, we can also provide a variety of graphite electrode products to meet customer requirements.





Surface quality of ultra high power graphite electrode

1. There are no more than two defects or holes on the electrode surface, and their size does not exceed the table below.

2. There are no transverse cracks on the electrode surface, and the width of 0.3-1.0mm longitudinal cracks, the length of which is not more than 5% of the electrode circumference, and the longitudinal cracks with a width of not less than 0.3mm are not counted.

3. The black skin area on the electrode surface, the width is less than 1/10 of the electrode circumference, and the length is less than 1/3 of the electrode length.







Physical Properties		RP Grade	HP Grade	UHP Grade
		(Dia.50-600mm)	(Dia.50-600mm)	(Dia.50-600mm)
Electrical Resistance (max) μΩ-m	Electrode	<8.0	<7.0	<6.0
	Nipple	6.5	5.5	5
Bending Strength (min) Mpa	Electrode	11	12	12
	Nipple	14	14	16
Elastic Modulus (max) Gpa	Electrode	9	12	12
	Nipple	12	14	14
Bulk Density (min) g/cm3	Electrode	>1.58	>1.65	>1.68
	Nipple	>1.70	>1.72	>1.73
C.T.E (max) ×10-6/C	Electrode	2.7	2.5	2.4
	Nipple	2.5	2.2	2.0
Ash (max) %	Electrode	<0.30	<0.30	<0.20





1. On-time delivery

2. Door-to-door delivery

3. Comprehensive warranty covering all our products

4. Quick response to inquiries and after-sales issues



We strictly monitor the production quality of the graphite electrode products from raw materials to products, and directly eliminate unqualified products to eliminate your worries. If you have any questions about related products, please contact us.
