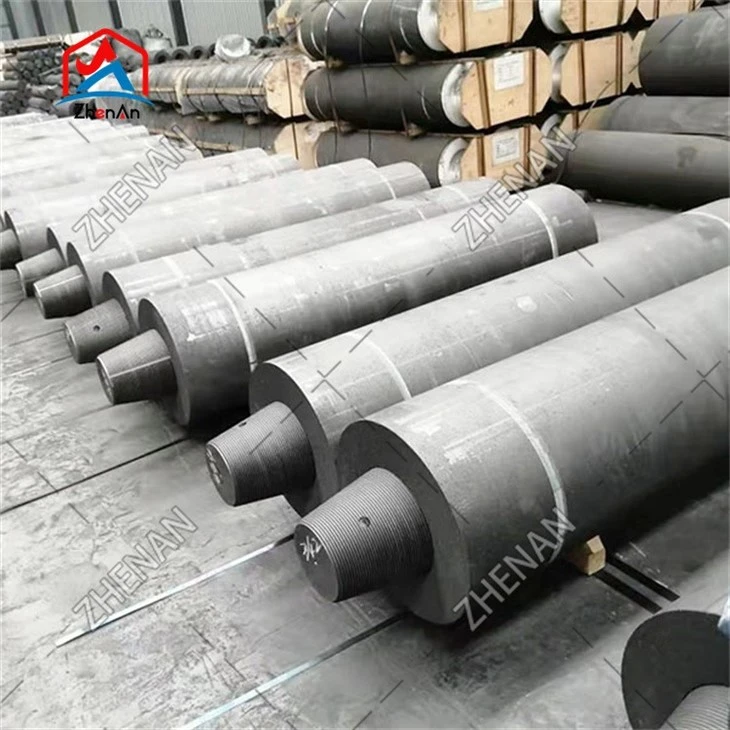

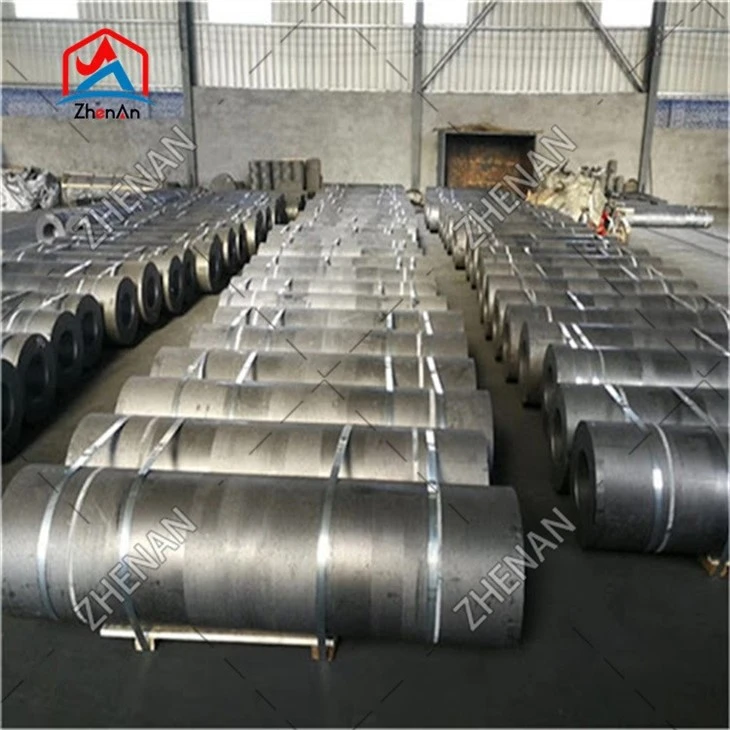

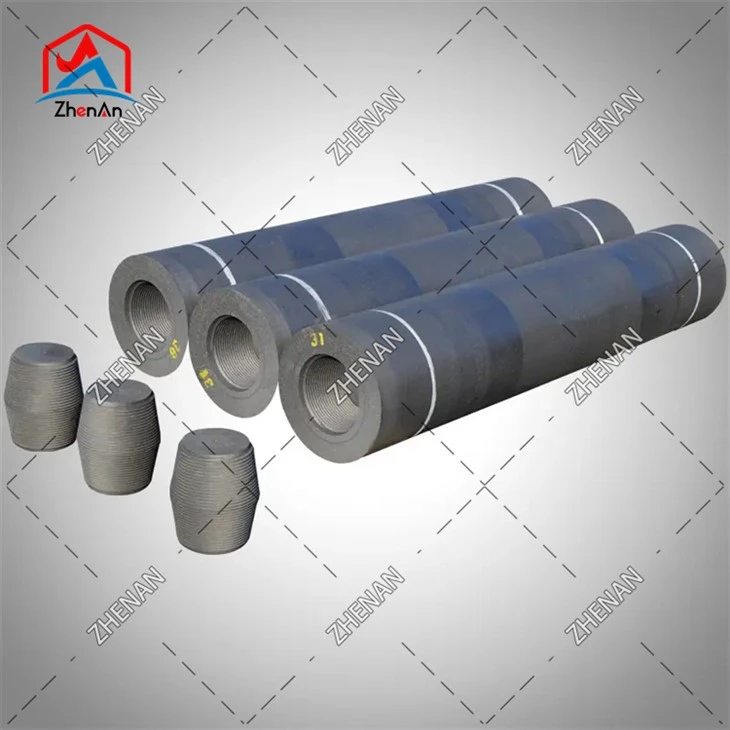

Graphite Electrode Connector
Ash: 0.3% max
Advantages: Stable to thermal shock
Density: 1.72 g/cm3
Technologically advanced graphite electrode manufacturer - Zhenan
Our products have been exported to more than 120 countries and regions in Europe, Asia, Africa, South America and North America. Our products are also well received and praised by customers.
Performance of Zhenan graphite electrode
As the electrode material of electric arc furnace, the performance of graphite electrode has an important impact on production efficiency and product quality. The main performance indicators of graphite electrode are introduced below.
1. Density
The density of graphite electrode refers to its mass per unit volume, which is one of the important indicators for evaluating the quality of graphite electrode. The density of graphite electrode is usually between 1.65-1.85g/cm³. The higher the density, the better the strength and wear resistance of the electrode, and the thermal expansion of the electrode can also be reduced.
2. Strength
The strength of graphite electrode refers to the maximum stress value that the electrode can withstand when subjected to external force. The strength of graphite electrode is related to its density, microstructure, manufacturing process and other factors. The higher the strength, the stronger the electrode's load-bearing capacity and impact resistance.
3. Conductivity
The conductivity of graphite electrode refers to its conductivity, which is usually expressed by resistivity. The lower the resistivity, the better the conductivity, which can reduce the energy loss of the electrode and improve the smelting efficiency.
4. Oxidation resistance
During the arc furnace smelting process, graphite electrodes will be affected by high-temperature oxidation, so their oxidation resistance is also one of the important indicators for evaluating the quality of graphite electrodes. The oxidation resistance of graphite electrodes is related to their microstructure and manufacturing process. The better the oxidation resistance, the longer the life of the electrode.
Zhenan graphite electrode allows current
| Nominal diameter (mm) | Allowable current (A) |
| 350 | 20000-30000 |
| 400 | 25000-40000 |
| 450 | 32000-45000 |
| 500 | 38000-55000 |
Our Advantages
1.First-class technology and the rigorous work attitude
2.Professional teams to solve all kinds of problems you have during manufacturing process
3.Low purchasing cost for repetitive orders
4.Excellent customer service
Zhenan customer visit and environmental display
If you have any questions about our graphite electrode products, you can contact us for product consultation. We look forward to hearing from you.
