Nickel Strip Thickness & Width Tolerance Guide

A nickel strip can meet the nominal size on paper and still cause problems if its actual thickness or width varies too much.

For battery tabs, precision electronic parts, stamping and welded connections, dimensional consistency affects fit, weld energy, electrical resistance, forming stability and edge quality.

This is why you should not place an order with only a nominal size such as "0.15 mm × 8 mm." Your PO should also define the allowable thickness and width tolerance when your process depends on dimensional consistency.

For the standard framework and dimensional scope, see our GB/T 2072 Nickel Strip Standard Guide.

The thinner the strip, the more important a small absolute deviation can become.

For example, a dimensional variation that looks minor on a thick strip can represent a much larger percentage of the total thickness on a thin battery tab or precision connector.

This can affect:

• welding consistency - thickness variation changes how much energy is needed to form a stable weld;
• electrical resistance - a smaller actual cross-section can increase resistance;
• forming - dimensional variation can change bend and stamping behavior;
• fixture fit - width variation can affect positioning in automated equipment;
• stacking consistency - uneven strip dimensions can affect assembly height and alignment.

Nominal thickness tells you the target dimension. Tolerance tells you how far the actual strip is allowed to move above or below that target.

If your drawing already defines a thickness tolerance, send the drawing directly instead of replacing it with a vague phrase such as "standard tolerance."

Width tolerance is especially important after slitting.

A strip that is too wide may not fit your fixture, stamping die or automatic feeding system. A strip that is too narrow may reduce contact area or move away from the intended weld position.

For battery and electronic applications, width control can also affect:

• tab placement;
• weld position;
• current-path cross-section;
• part alignment;
• material yield after stamping.

In battery tabs, dimensional tolerance affects more than mechanical fit.

If the strip is thicker than expected, your existing welding parameters may not deliver the same joint. If it is thinner than expected, the joint can respond differently to the same welding energy.

This is why a battery-tab specification should normally consider these items together:

• nickel grade;
• nominal thickness;
• thickness tolerance;
• nominal width;
• width tolerance;
• temper;
• surface condition;
• edge quality;
• welding method.

The grade tells you the chemistry direction. The dimensions and tolerances determine whether the strip physically fits and behaves consistently in your process.

A strip can meet its width tolerance and still have poor edge quality.

Width tolerance controls the overall strip dimension. Burr control describes the condition of the slit edge.

If burr height matters to your application, write it as a separate acceptance item rather than assuming "tight width tolerance" also guarantees a burr-free edge.

A good purchase specification should make the acceptance rule measurable.

Avoid:

Use a structure closer to:

If your tolerance is tighter than the applicable standard range, identify it as a special drawing requirement and ask us to confirm production capability before order approval.

Incoming dimensional inspection should follow the tolerance agreed in your PO or drawing.

You can check:

• thickness at multiple points instead of relying on one measurement;
• width at multiple positions along the strip;
• edge condition after slitting;
• surface condition for scratches, contamination or oxidation;
• coil identification so the dimensional record can be traced to the correct batch.

Use a calibrated measuring tool appropriate for the tolerance you are trying to verify.

A coil is a continuous product. One measurement at the outer end does not tell you whether the full coil is dimensionally consistent.

If your application is sensitive to dimensional drift, your inspection plan can define:

• the number of measurement points;
• where measurements are taken across the strip width;
• where measurements are taken along the coil length;
• whether each coil requires its own record;
• what happens if one value falls outside the agreed tolerance.

This makes incoming inspection reproducible instead of depending on one random check.

A standard tolerance is useful when your process does not need additional dimensional control.

A custom tolerance is more appropriate when:

• your welding parameters are already validated around a narrow thickness range;
• your stamping die has limited dimensional clearance;
• your automated feeding equipment requires tight width consistency;
• your battery or electronic drawing explicitly defines a tighter band;
• previous dimensional variation caused process instability.

Tighter tolerance usually requires tighter process control, so confirm feasibility before treating a drawing value as a guaranteed supply condition.

N4, N6, Nickel 200 or Nickel 201 tells you what material chemistry you are buying. It does not tell you how tightly the strip has been rolled or slit.

This means two orders with the same nickel grade can still behave differently if:

• their thickness tolerances are different;
• their width tolerances are different;
• their temper is different;
• their edge quality is different;
• their surface condition is different.

For grade selection, see our N4 vs N6 Nickel Strip Guide.

Is there one standard thickness tolerance for all nickel strip?

No. The applicable tolerance depends on nominal thickness, width, product form, precision level and the standard or technical agreement used for the order.

Why does thickness tolerance matter for battery welding?

Thickness variation changes the amount of material at the weld point. This can affect how the strip responds to the same welding energy and can reduce process consistency.

Can I request a tighter tolerance than the standard?

Yes, subject to production confirmation. Put the required tolerance on your drawing or PO and confirm feasibility before placing the order.

Is width tolerance the same as burr control?

No. Width tolerance controls the overall strip dimension. Burr is a separate edge-quality requirement created during slitting.

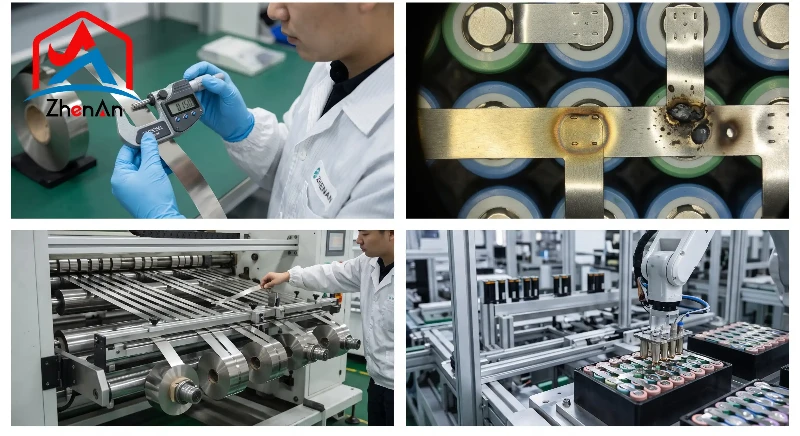

How should I measure nickel strip thickness?

Use an appropriate calibrated thickness-measuring tool and take measurements at the locations defined in your incoming inspection plan rather than relying on one random point.

Should every coil have the same thickness report?

If dimensional consistency is critical to your process, you can require per-coil dimensional records or an agreed sampling plan in the purchase specification.

Does N4 have a tighter dimensional tolerance than N6?

Not automatically. N4 and N6 define material chemistry direction. Dimensional tolerance is a separate requirement and should be specified independently.

Where can I check the GB/T 2072 standard range?

See our GB/T 2072 Nickel Strip Standard Guide for the standard dimensional framework and acceptance logic.
